Precast concrete workshop using motorized billet transfer car on rails
Billet transfer car introduction
KPC series railway flat carts are powered by the sliding line.The flat carts get power AC 380V through the device of cable reel which is installed at the bottom of the cart.The motor is controlled by the power
through the AC control system .We use this principle to operate the carts ,for example ,start ,stop,go forward and so on. The operation system is low voltage 36v.The hydraulic lifting device can be installed on the flat carts .This series' flat carts are suitable to be used in the bed environment ,for example , high-temperature and an-explosion condition .With its simple structure and low price ,this series are more often used to transfer materials from one workshop to another .
Advantage of billit transfer car
Compared with other series ,the using time is not limited ;it has no strict requirement for the construction of the railway .The load capacity is not limited and can be used frequently. If the running distance is more than 50m, a cable arranger needs to be installed to arrange the cables.The running distance of KPJ series can reach to 200m.
Billit transfer car details:
Our advantage :
- Export to more than 20 countries
- Complete range of 1-300 tons material transfer car.
- Guide the dynamic market.
- Quality control by third party.
- 30-45 days deliver while order.
- Promise 18 hours online or telephone service.
- Provide relative auxiliary facility
- Anti-explosion,Anti-high temperature.
Parameter of rail transfer car:
| Model | KPC-2t | KPC-20t | KPC-50t | KPC-100t | KPC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ350 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Billit transfer car application:
The billit transfer car is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).
Our Packaging:
Customer visit of billit transfer car
Processing flow :
Our after-sale service:
-
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
-
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
-
16 hours engineering service and 24 hours internet service for our customers.
-
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
-
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
|
|

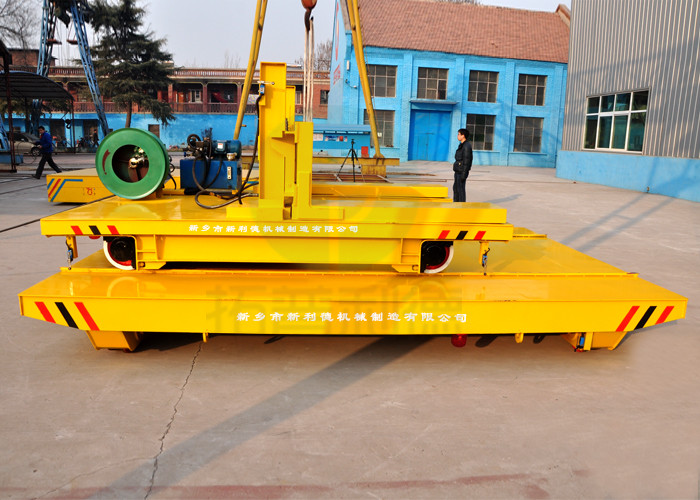

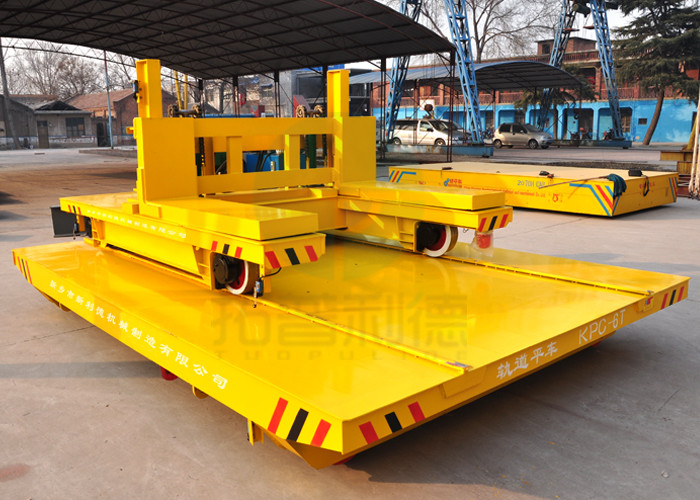

Precast concrete workshop using motorized billet transfer car on rails Images
|
